Open the Server Manager from the task bar.

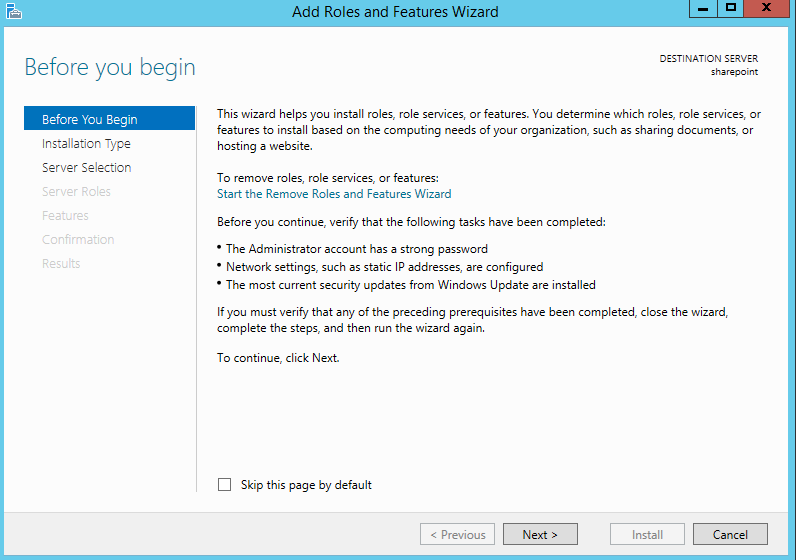

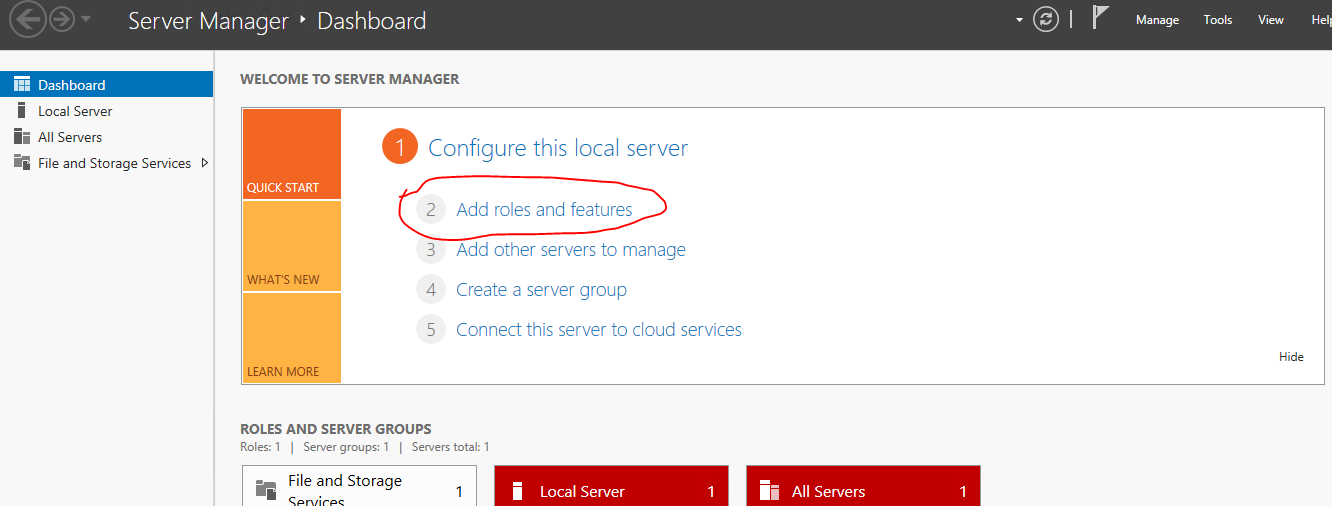

From Server Manager Dashboard select Add roles and features. This will launch the Roles and Features Wizard allowing for modifications to be performed on the Windows Server 2012 instance.

Select Role-based or features-based installation from the Installation Type screen and click Next.

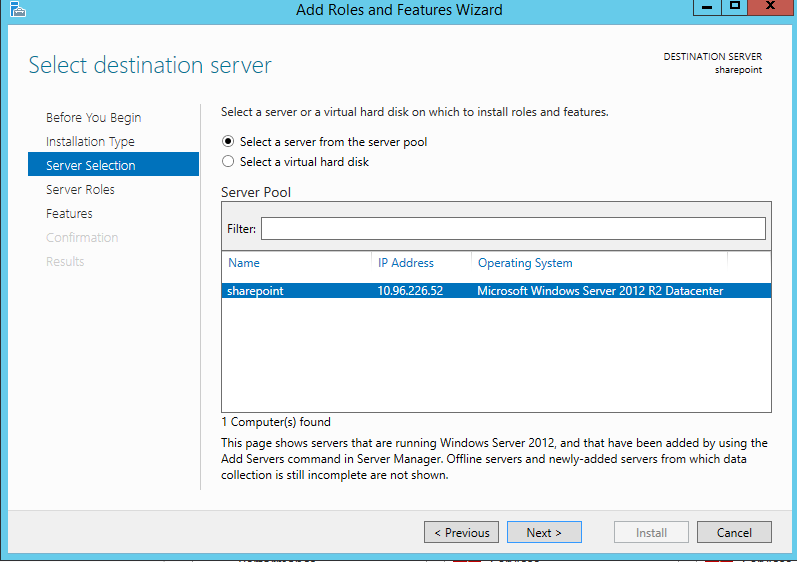

The current server is selected by default. Click Next to proceed to the Server Roles tab.

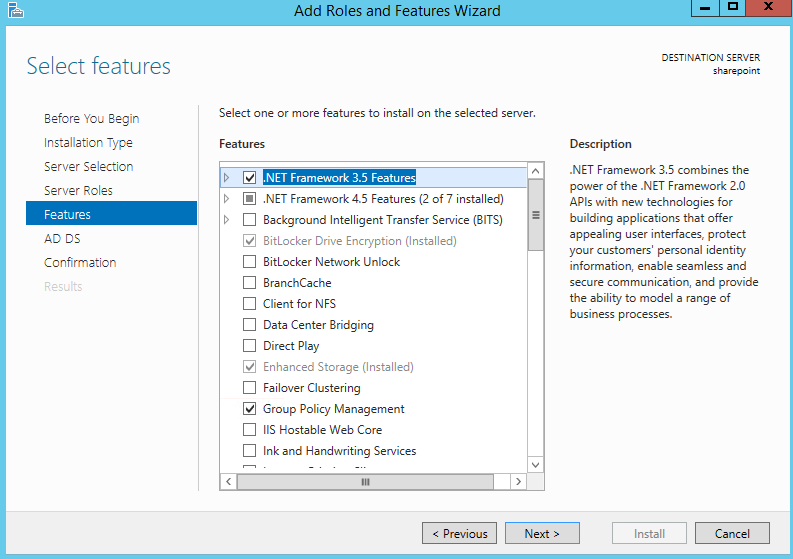

From the Server Roles page place a check mark in the box next to Active Directory Domain Services. A notice will appear explaining additional roles services or features are also required to install domain services, click Add Features.

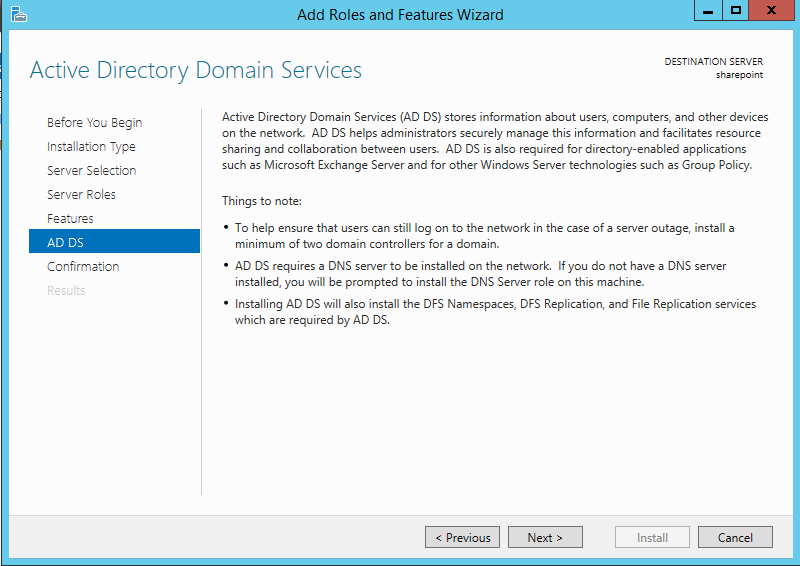

Review the information on the AD DS tab and click Next.

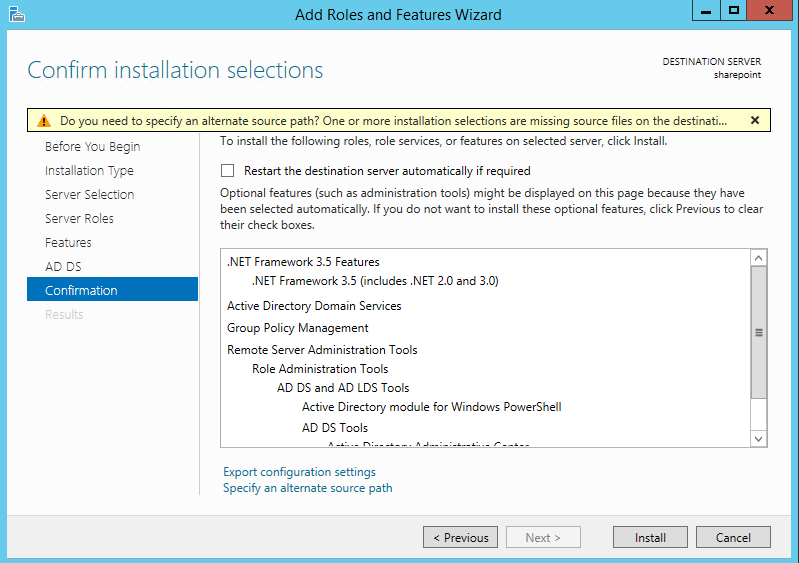

Review the installation and click Install.

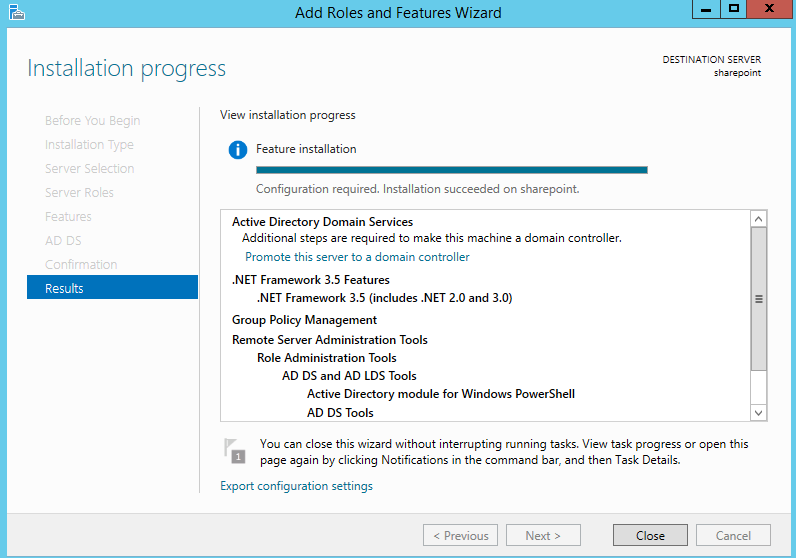

Once the server is done rebooting reconnect via RDP. successfully install and configure Active Directory Domain Services

Configuring Active Directory

Once the AD DS role is installed the server will need to be configured for your domain.

1.Open the Server Manager from the task bar.

2. Open the Notifications Pane by selecting the Notifications icon from the top of the Server Manager. From the notification regarding configuring AD DS click Promote this server to a domain controller.

From the Deployment Configuration tab select Add a new forest from the radial options menu. Insert your root domain name into the Root domain name field.

Review and select a Domain and Forest functional level. Once selected fill in a DSRM password in the provided password fields. The DSRM password is used when booting the Domain Controller into recovery mode.

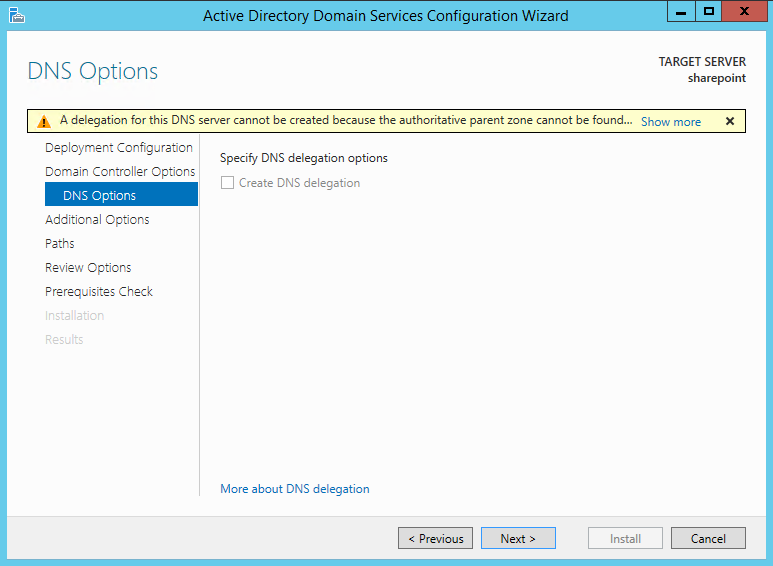

Review the warning on the DNS Options tab and select Next.

Confirm or enter a NetBIOS name and click Next.

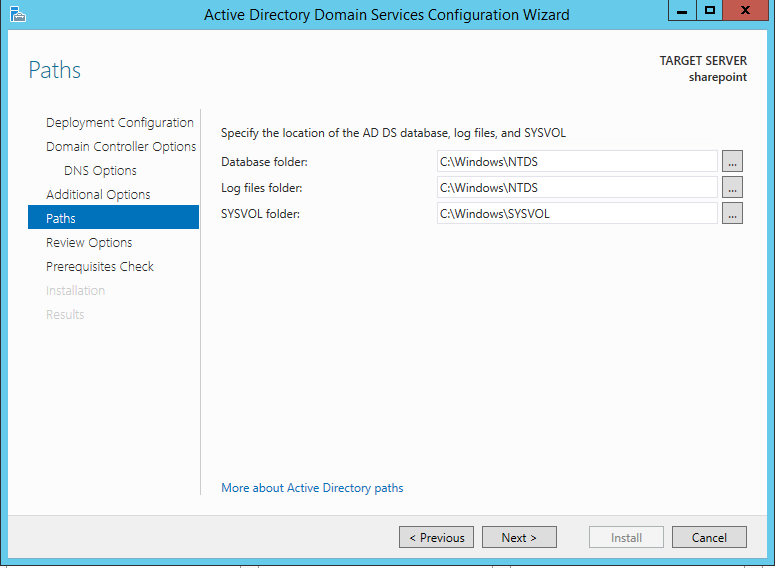

Configure the location of the SYSVOL, Log files, and Database folders and click Next.

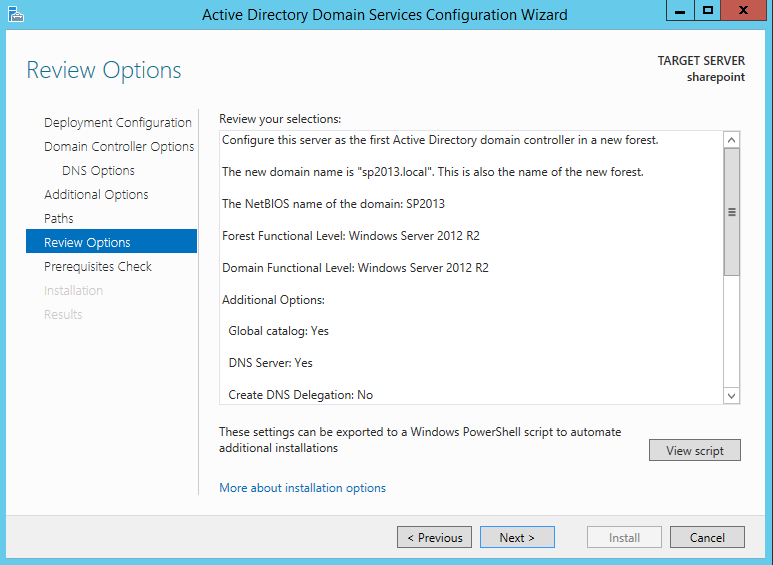

Review the configuration options and click Next.

The system will check to ensure all necessary prerequistes are installed on the system prior to moving forward. If the system passes these checks you will proceed by clicking Install.
